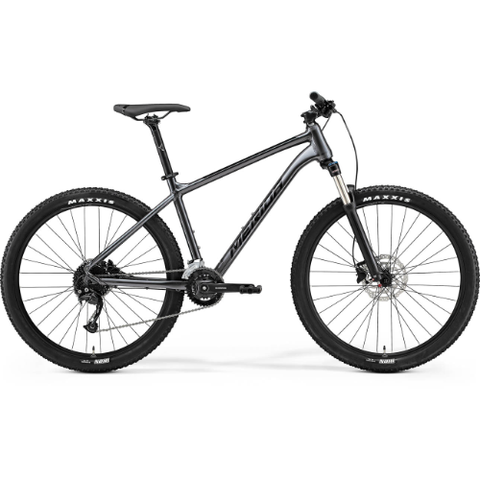

Big Seven 100
Featuring a 100 mm air suspension fork and easy to accelerate, nimble 27.5" wheels, the BIG.SEVEN 100 allows you to cover ground efficiently and in perfect control. The slightly more minimalistic double chainring setup provides a broad range of gears, perfect for long off-road sessions and fast blasts through the urban jungle. The slightly more upright riding position puts less strain on the lower back and also improves the visibility of what lies ahead.
"The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5"" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. They symbolise the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'. "
01. FRAME | BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR |
02. SIZES | XS-S |
03. FORK | Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset |
04. GEARS | 2 x 9 |
05. CHAINWHEEL | Shimano MT101-2; 36-22 ATC |
06. CRANK LENGTH | 170 mm-S, 175 mm-M up |
07. BOTTOM BRACKET | FSA TH-7420ST Cartridge Bearing |
08. CASSETTE | Shimano HG200; 11-36 ATC; 9 GER |
09. CHAIN | KMC M99 |
10. CHAINGUARD | n/a |
11. DERAILLEUR - FRONT | Shimano M2020-TS |
12. DERAILLEUR - REAR | Shimano Alivio Shadow |
13. SHIFTER - FRONT | Shimano Altus |
14. SHIFTER - REAR | Shimano Altus |
15. DROPPER LEVER | n/a |
16. BRAKES | Tektro M275; 2 piston |
17. ROTOR - FRONT | Shimano RT10; 180mm |
18. ROTOR - REAR | Shimano RT10; 160mm |
19. HANDLEBARS | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
20. STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD |
21. STEM LENGTH | 50 mm all sizes |
22. HEAD SET | MERIDA M2346 Neck |
23. SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
24. SADDLE | MERIDA COMP SL; V-mount |
25. HUB - FRONT | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
26. HUB - REAR | Shimano TX505; 135x9 WHR; 32 SPH; Centerlock |
27. AXLE - REAR | - |
28. SPOKES | Black stainless |
29. RIMS | MERIDA COMP CC; 20 IWR; MAT aluminium |
30. TYRES | Maxxis Ikon; 27.5x2.2"; wire |
31. PEDALS | VP VPE-891 |
32. OTHER | no |
33. MAX. RIDER WEIGHT | 135kg |
