Mondraker

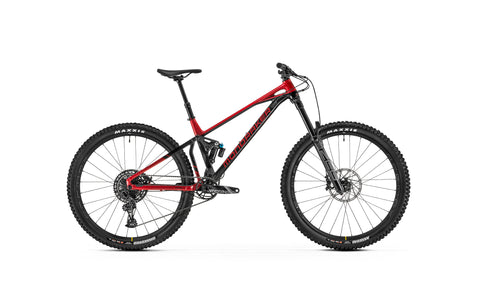

Superfoxy T - Black/Cherry Red
$3,999.00
$6,199.00
THE "BABY" OF THE SUPERFOXY FAMILY IS NO TODDLER
The "baby" of the SUPERFOXY family is no toddler. Its frame is made of ultra-resistant STEALTH ALLOY aluminium, it has our unparalleled ZERO suspension system and FORWARD GEOMETRY which all add up to make you simply unstoppable. Its 170mm of travel at the front and 160mm at the back will make you feel safe and let you thoroughly enjoy the most jaw-dropping single tracks on the map. What’s more, for the 2023 model the Superfoxy gets a tuned Fox 38 fork and a Fox Float X shock to make the bike shine in any situation. Being the smallest of the family doesn’t mean that it’s not just as capable as its top of the range carbon big brother.
| 01. Frame | SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry |
| 01a. Frame | One piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05 |
| 02. Sizes | S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
| 03. Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| 04. Shock Settings | Medium compression, medium rebound, air volume spacer 0.2 |
| 05. Fork | RockShox Zeb RC 29, 170mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 38mm aluminum stanchions, offset 44mm. Settings: low-speed compression to lock, rebound, air preload |
| 06. Headset | ONOFF Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degree x45 degree , bottom 51.9x40x8x45 degree x45 degree |
| 07. Stem | ONOFF Sulfur FG 30mm 0 degree , 6061 forged alloy, 31.8mm barbore |
| 08. Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore |
| 09. Grips | ONOFF Twin, 1lock-on, 135mm |
| 10. Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| 11. Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| 12. Front Brake | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 13. Rear Brake | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 14. Brake Lever | SRAM G2 R, tool-free reach adjust |
| 15. Rims | Mavic Custom Deemax 29, 28mm internal width, Maxtal welded rim, tubeless ready, 28 spokes |
| 16. Spokes | Mavic J-bend duble butted |
| 17. Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| 18. Rear Hub | Mavic, SuperBoost 12x157mm, ID360 Ratched system, IS 6 bolts |
| 19. Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| 20. Rear Tyre | Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| 21. Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| 22. Chainring | 32T, CNC-machined alloy, X-SYNC 2 |
| 23. Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| 25. Chain | SRAM SX Eagle, 12s, Powerlock |
| 27. Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| 28. Shift Levers | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| 29. Cassette | SRAM PG-1210, 11-50T, 12s |
| 30. Hanger | Mondraker M068 |
