Merida

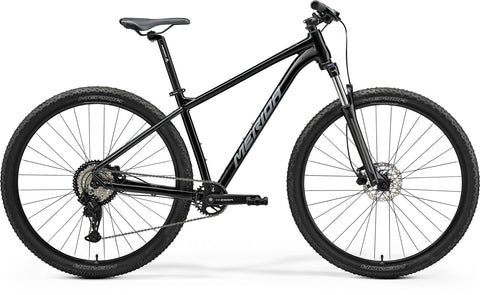

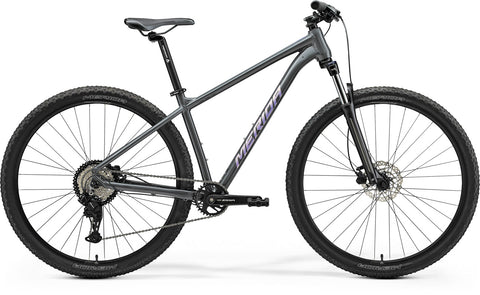

Big Nine 20 IV2
$949.00
Aluminium hardtail, sporting fast-rolling 29er wheels, our more comfort-focused geometry, 100 mm of front suspension and a single ring chainset setup, keeps things fast and simple and offer lots of comfort and control during your next off-road adventure.
| FRAME | BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR |
| SIZE | S-M-L-XL-XXL |
| FORK | SR Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS |
| BRAKE LEVER | |
| BRAKE - FRONT | Tektro HD-M275; hydraulic brake |
| BRAKE - REAR | Tektro HD-M275; hydraulic brake |
| ROTOR - FRONT | Shimano RT10; 160 mm |
| ROTOR - REAR | Shimano RT10; 160 mm |
| CHAIN | KMC Z8.3 |
| CHAINWHEEL | Shimano ESSA FC-U2001 32 ATC; MAT Aluminium |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Shimano BB-UN101 73-123 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano ESSA RD-U2000-8; GS |
| FREEWHEEL | Shimano CS-HG400-8; 11-45 ATC; 8 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EC |
| HANDLEBAR | MERIDA CC; MAT aluminium; 690 WHB; 15 RHB |
| H-B STEM | MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD |
| H-STEM/SIZE | 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
| HEAD SET | MERIDA M2345 |
| HUB - FRONT | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TX505; 135x9 WHR; 32 SPH; Centerlock |
| RIM | MERIDA CC; 17 IWR; MAT aluminium |
| SADDLE | MERIDA Sport comfort |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano ESSA SL-315-8R |
| INNER TUBE | 29*2.2 A.V |
| TYRE - FRONT | MERIDA K1080; 29x2.2"; wire |
| TYRE - REAR | MERIDA K1080; 29x2.2"; wire |
