Merida

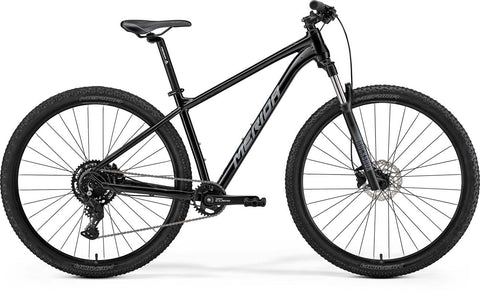

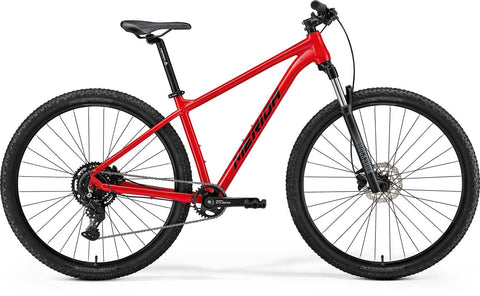

Big Nine 80 IV1
$1,129.00
| FRAME | BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR |
| SIZE | S-M-L-XL-XXL |
| FORK | Rock Shox Judy TK; Coil; 100 STR Lockout; 46mm fork offset; 29x2.25" max. WHS |
| BRAKE LEVER | |
| BRAKE - FRONT | Shimano BR-MT200; hydraulic brake |
| BRAKE - REAR | Shimano BR-MT200; hydraulic brake |
| ROTOR - FRONT | Shimano RT10; 160 mm |
| ROTOR - REAR | Shimano RT10; 160 mm |
| CHAIN | KMC xGlide |
| CHAINWHEEL | Shimano CUES U4000; 32 ATC; MAT Aluminium |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Shimano BB-UN101 73-123 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U4000-9; GS |
| FREEWHEEL | Shimano CS-LG300-9; 11-46 ATC; 9 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EC |
| HANDLEBAR | MERIDA CC; MAT aluminium; 690 WHB; 15 RHB |
| H-B STEM | MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD |
| H-STEM/SIZE | 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
| HEAD SET | MERIDA M2345 |
| HUB - FRONT | Shimano HB-TX505; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano FH-TX505; 135x9 WHR; 32 SPH; Centerlock |
| RIM | MERIDA CC; 17 IWR; MAT aluminium |
| SADDLE | MERIDA Sport comfort |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U4000-9R |
| INNER TUBE | 29*2.2 A.V |
| TYRE - FRONT | MERIDA K1080; 29x2.2"; wire |
| TYRE - REAR | MERIDA K1080; 29x2.2"; wire |
