Merida

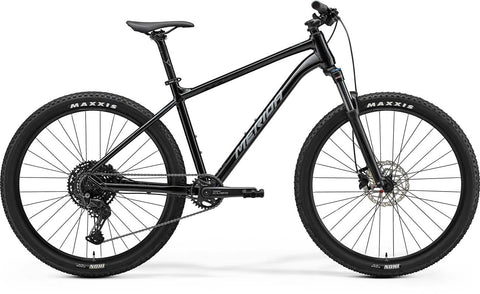

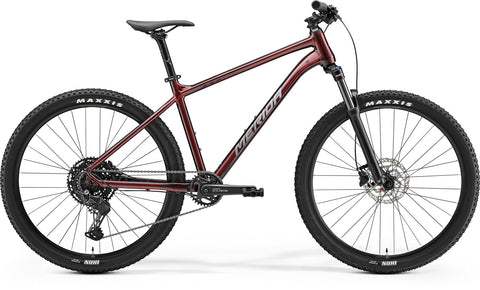

Big Seven 200 IV1
$1,249.00
Single chainring aluminium 27.5" wheeled hardtail, featuring a 100 mm air suspension fork, a 10-speed Shimano drivetrain and powerful hydraulic disc brakes. The BIG.SEVEN 200 is ready for your next off-road adventure.
| FRAME | BIG.SEVEN TFS IV; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR |
| SHOCK | |
| FORK | Suntour XCR32-ATB LOR; Air; 100 STR; Lockout; 44mm fork offset |
| BRAKE - FRONT | Shimano MT200; 2 piston |
| BRAKE - REAR | Shimano MT200; 2 piston |
| ROTOR - FRONT | Shimano RT10; 180mm |
| ROTOR - REAR | Shimano RT10; 160mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | |
| CHAINWHEEL | Shimano CUES U6000; 32 ATC |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Shimano MT500 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
| H-B STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD |
| H-STEM/SIZE | XS, S: 70 mm, M: 80 mm, L:90 mm |
| HUB - FRONT | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano QC300-HM; 135x9 WHR; 32 SPH; Centerlock |
| AXLE - REAR | |
| RIM | MERIDA COMP CC; 20 IWR; MAT aluminium |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Maxxis Ikon; 27.5x2.2"; wire |
| TYRE - REAR | Maxxis Ikon; 27.5x2.2"; wire |
