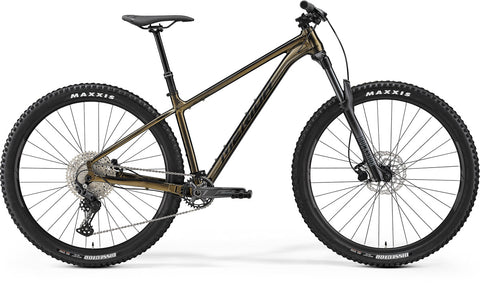

Big Trail 500
Trail riding is your passion and you love the simplicity of a hardtail as well as the way it connects you to the track. The BIG.TRAIL 500 is your perfect companion, featuring a playful yet stable geometry that will deliver confidence and inspires you to go that little bit further. Chunky 29er tyres, a long travel fork and a long dropper post increase that confidence and capability even further.
We often associate 'trail fun' and 'trail capability' with more and more full suspension travel because long-travel bikes are getting more capable on the way down and on the way back up again. At the same time, the trail hardtail has developed quietly in its shadow. After being absent from this segment, we returned to the trails with a bang onboard our BIG.TRAIL. Our trail hardtails took the bike press and trail riders by storm and have managed to perfectly combine a modern trail bike geometry with long-travel forks and chunky 29er wheels for amazing corner grip and comfort. Bikeboard.cc confirmed that we 'nailed it', while MBR, IMB and many more confirmed that the BIG.TRAIL is firmly at the top of the trail hardtail game. If you haven't heard or you're not yet a proud owner of it, then welcome to our BIG.TRAIL which offers simplified and hassle-free trail fun in spades. Available from S to XXL giving our BIG.TRAIL ample size and reach options.
01. FRAME | BIG.TRAIL TFS; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
02. SIZES | S-M-L-XL |
03. FORK | Rock Shox Recon Silver RL; 140 STR; Tapered; 42mm fork offset |
04. GEARS | 1 x 11 |
05. CHAINWHEEL | Shimano Deore M5100; 32 ATC |
06. CRANK LENGTH | 170 mm-S, 175 mm-M up |
07. BOTTOM BRACKET | - |
08. CASSETTE | Shimano Deore M5100; 11-51 ATC; 11 GER |
09. CHAIN | KMC X11 |
10. CHAINGUARD | Mr. Control CH-CM1 |
11. DERAILLEUR - FRONT | n/a |
12. DERAILLEUR - REAR | Shimano Deore M5100 Shadow+ |
13. SHIFTER - FRONT | n/a |
14. SHIFTER - REAR | Shimano Deore M5100 |
15. DROPPER LEVER | Shimano SL -MT500-IL |
16. BRAKES | Tektro M275; 2 piston |
17. ROTOR - FRONT | Shimano RT10; 180mm |
18. ROTOR - REAR | Shimano RT10; 180mm |
19. HANDLEBARS | MERIDA EXPERT TR; MAT aluminium; 780 WHB; 20 RHB |
20. STEM | MERIDA EXPERT TR; MAT aluminium; 35 DSH; 0 ASD |
21. STEM LENGTH | 50 mm all sizes |
22. HEAD SET | MERIDA M4455 |
23. SEAT POST | MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT |
24. SADDLE | MERIDA COMP SL; V-mount |
25. HUB - FRONT | Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock |
26. HUB - REAR | Shimano MT400-B; 148x12 WHR; 32 SPH; Centerlock |
27. AXLE - REAR | MERIDA COMP TR; including removeable lever, 6 allen key |
28. SPOKES | Black stainless |
29. RIMS | MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
30. TYRES | Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
31. PEDALS | VP VPE-891 |
32. OTHER | no |
33. MAX RIDER WEIGHT | 135kg |
