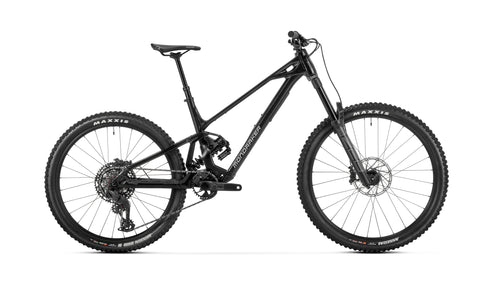

Mondraker Anark R - In store now
· Frame
Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sizes
S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm
Rear shock
RockShox Vivid Coil Select+, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork
RockShox ZEB Base Rush RC 29, 180mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset
Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Saddle
Ergon Enduro SPS20
Front brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB8 Stealth, tool reach adjust, lever pivot bushings
Rims
WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
WTB Straight gauge spokes & black brass locking nipples
Front hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
Rear hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead
Crankset
Sram 70 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55
Rings
32T, Alloy, T-type
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 70 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
Weight
17,8 kg
