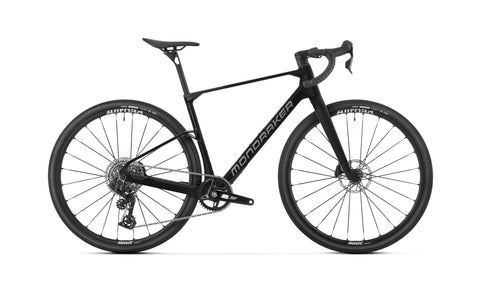

Mondraker Arid Carbon S
·
· Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
Grips
Onoff HEX Bartape
Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle
Fizik Vento Argo X5 140mm
Front brake
Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims
Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset
Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram Apex, 12s, Powerlock
Rear derrailleur
Sram Apex XPLR 12s
Shift levers
Sram Apex D1 12s, X-Actuation
Casette
Sram PG-1231 11-44, 12s
Derailleur hanger
Sram UDH
Weight
9,7 kg
