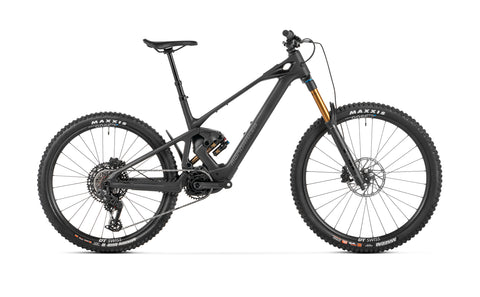

Mondraker Zendit RR - In store now
Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings
CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork
Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 7050 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon SM10 E-Mountain Black.
Front brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Rear brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Brake lever
Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes
DT Swiss Straightpull spokes, DT Hybrid I, black
Front hub
DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 12 x2TPI, folding bead
Crankset
e*thirteen Helix Race e*spec alloy. All sizes: 155mm
Rings
Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain
Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur
Sram S1000 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod Controller w/discrete clamp, 12s
Casette
Sram XS 1270, 10-52T, T-Type, 12s
Others
Sram AXS Extension Cord / Avinox 4A Charger
Weight
22.8 Kg
Display
Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor
Avinox M2S
Battery
Avinox 800Wh Battery
